The Fastener Auto-galvanizing Line

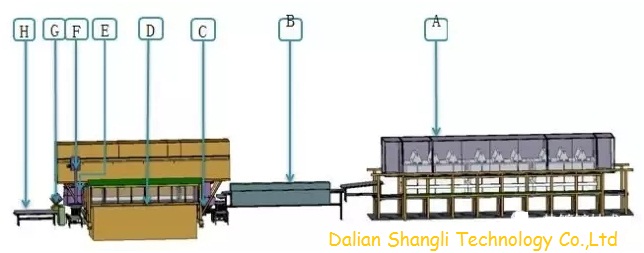

                                               A：Automatic pretreatment line.            B：Drying and weighting unit.

                                               C：Carriage 1: Loading unit.                  D：Galvanizing bath.

                                               E：Carriage 2: Centrifuge.                      F：Basket return system.

                                               G：Un-loading unit.                                H：Conveyer.

  Top View of Equipment (footprint size)

Small centrifugal equipment, Cooling system, Passivation system, Drying system

【Design Description】：

The weight of galvanized parts can be set (different weights can be set according to different plated parts);

The plated parts are automatically placed in the zinc pot, and the soaking time can be set arbitrarily;

Fast and high-speed zinc separation (centrifugal speed of 300-1000 rpm, adjustable speed);

Automatic feeding;

The entire device implements automatic circulation;

Automatic cooling and cutting;

Reduce centrifugal temperature difference and time difference to achieve low-temperature centrifugal galvanizing.
